Oil, petrolium, gasoline has lighter specific weight than water. This characteristic is used by grease traps on all gas stations, restaurants, hotels, auto services and parkings.
We produce a variety of grease traps from smaller ones to bigger.
Oil/water separators feature an integral sand interceptor compartment to permit sand and gravel to settle out before the wastewater enters the oil/water separator. Details >>
Maximum 10% flow goes through the separator and 90% goes through the bypass. On the end of outlet pipe from the separator a non-return valve is mounted. Details >>

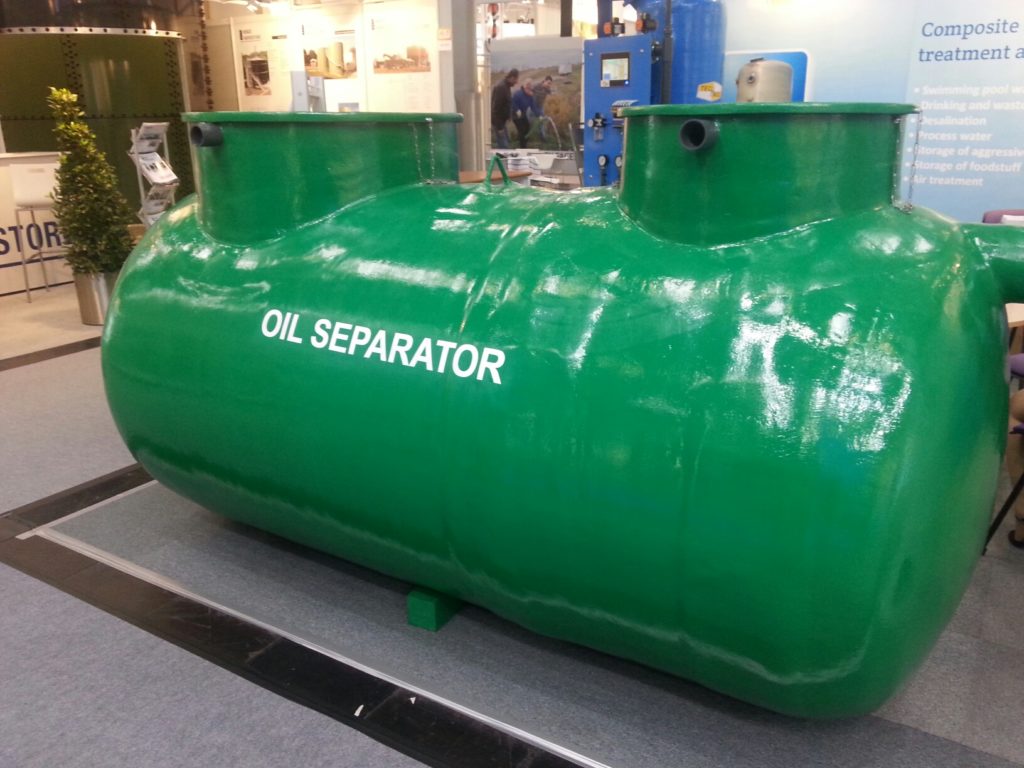

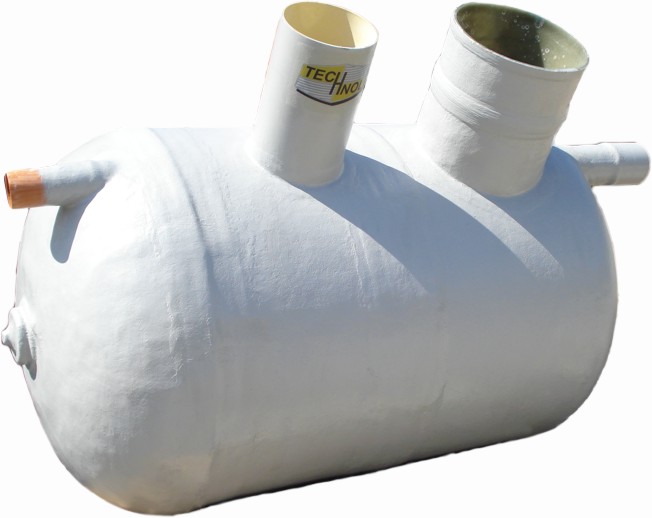

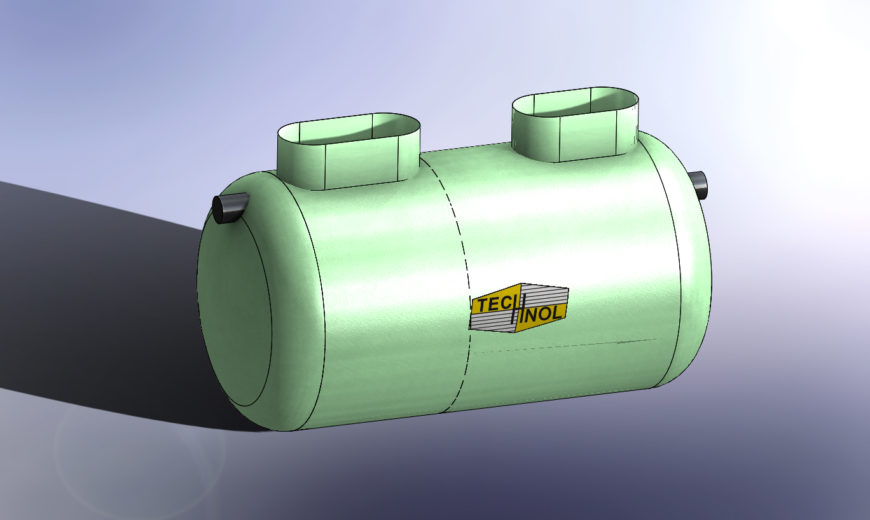

Technol oil/water separators are stationary wastewater treatment vessels, filled with water. The vessel is designed for unconfined access from above for inspection and maintenance.

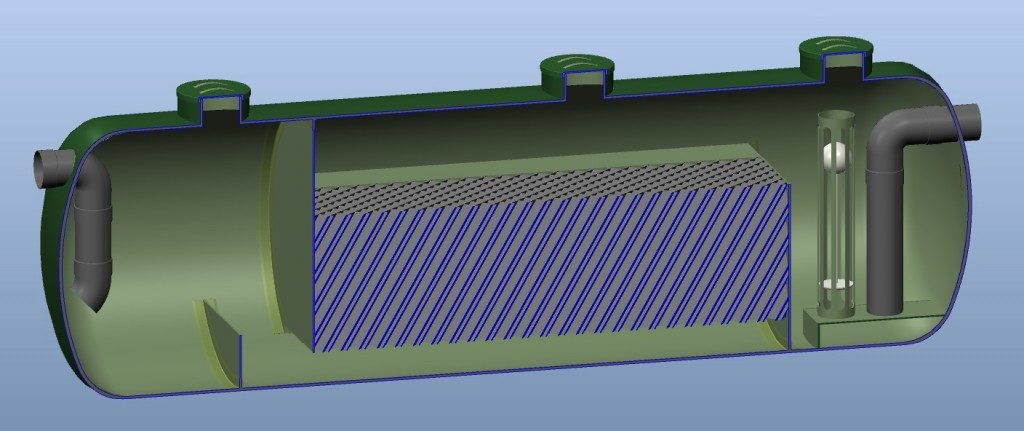

Inlet flow is made to reduce flow turbulence and to distribute the flow evenly over the separators cross sectional area. In the sediment chamber, heavy solids settle out and concentrated oil rises to the surface.
The oily water then passes through the pipe in the separation chamber. To intercept droplets of oil, we use a Coalescer (an encased bundle of layered oil-attracting fibers). The effluent flows downward to the outlet and is discharged by gravity displacement.
Large chambers allow total, unconfined, unrestricted access to the removable polyester foam and automatic closer device for safe visual inspection, cleaning, and maintenance.
Electronic oil level controls sound an alarm at high oil levels so that waste oil can be removed from the separator. Double-walled separators are monitored with electronic leak detection systems for the interstitial space.
